Introduction
"To take the Sideways RAM cartridges to their final design (I shouldn't say final as the RAM size can grow quite considerably)". Well I couldn't resist! I took version 3.5 and swapped out the 62256 memory for an AS6C4008 and added a hex switch to select between the sixteen pairs of banks.This harks back to the late 80's early 90's when I designed a switched eight image EPROM and 2019 when I designed virtually the same thing as an AP6 plug in module..please see my 'Electron' and 'My Acorn Revival 2019' pages to read more about them.
![](/ElectronSRAM/01_BBSRAMextreme.png)
![](/ElectronSRAM/02_BBSRAMextreme.jpg)
![](/ElectronSRAM/03_BBSRAMextreme.jpg)
![](/ElectronSRAM/04_BBSRAMextreme.jpg)

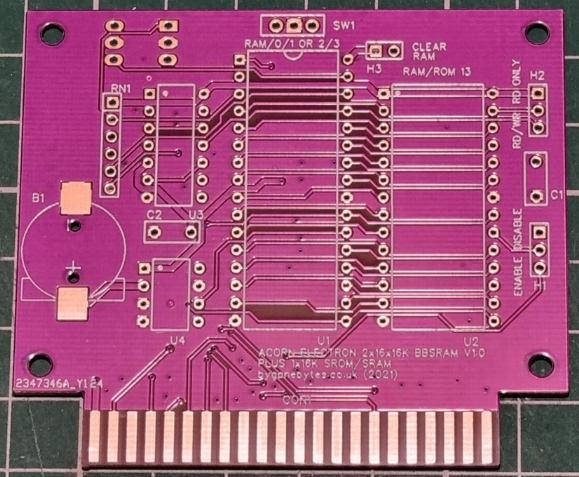

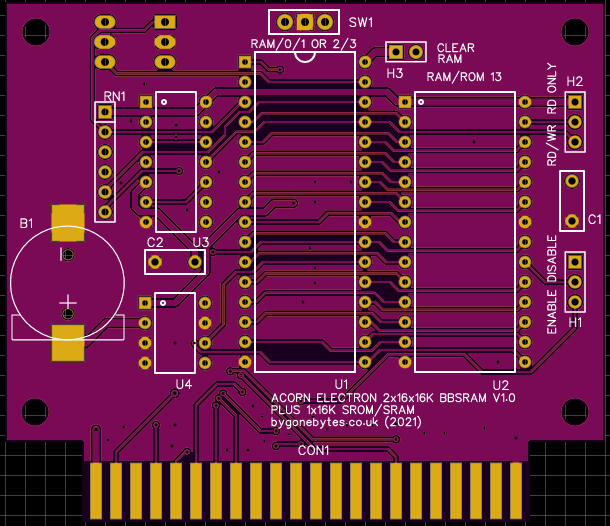

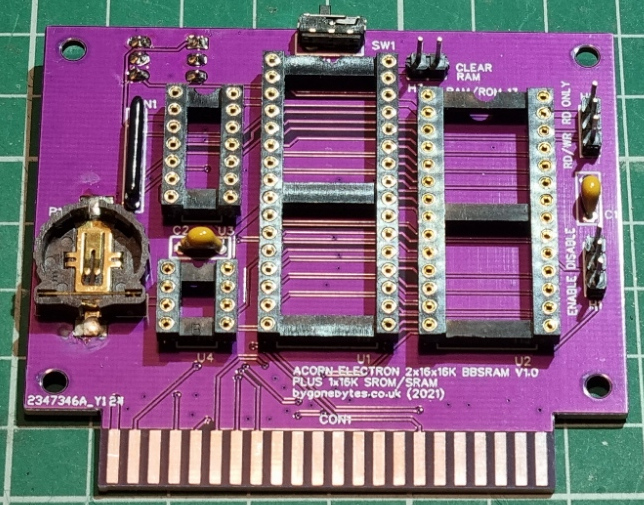

The SRAMextreme bare board and basic components added.
![](/ElectronSRAM/05_BBSRAMextreme.jpg)
![](/ElectronSRAM/06_BBSRAMextreme.jpg)

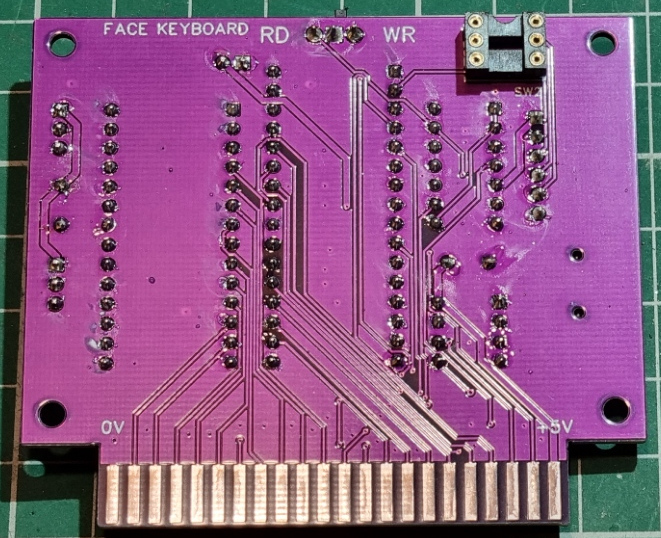

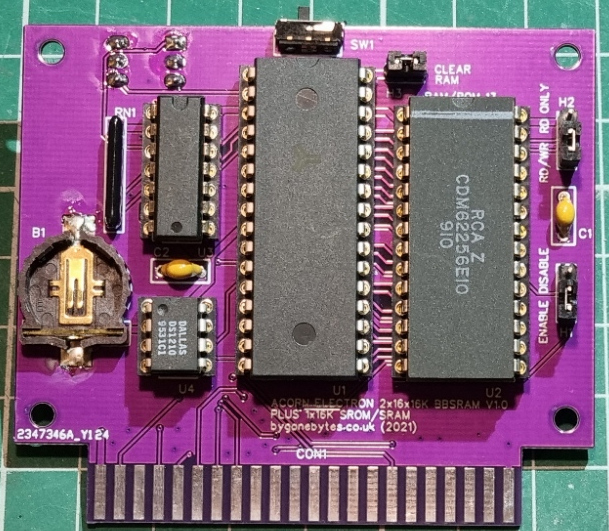

The rear of the board with the hex switch socket soldered in and the front of the board with the RAM and supporting chips inserted.
![](/ElectronSRAM/07_BBSRAMextreme.jpg)

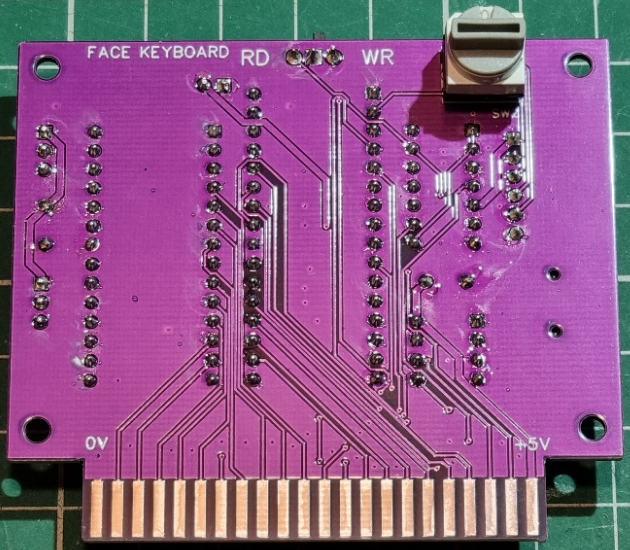

The hex switch in place.
![](/ElectronSRAM/08_BBSRAMextreme.jpg)
![](/ElectronSRAM/09_BBSRAMextreme.jpg)

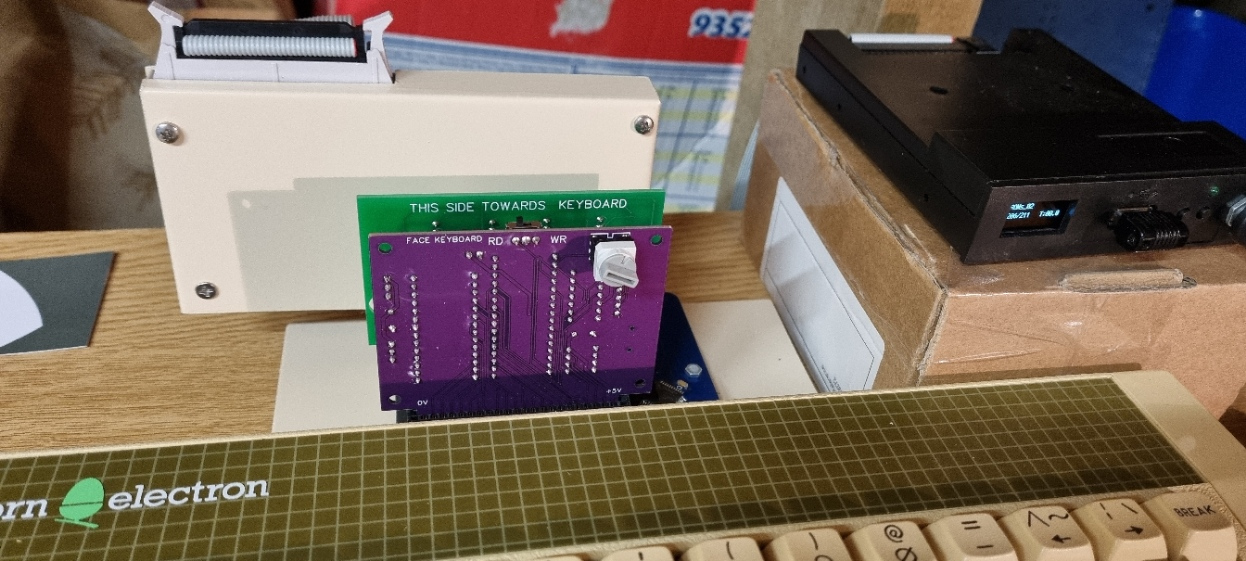

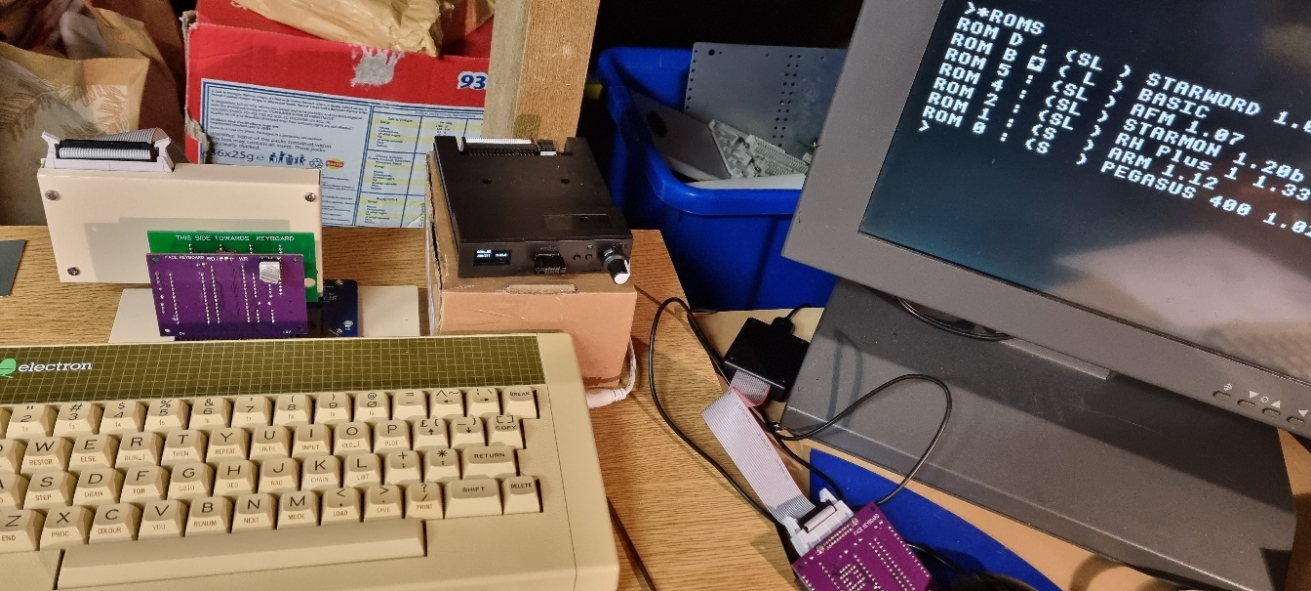

Testing banks 4, 5 and 13. Banks 4 and 5 can be switched sixteen times to load and use up to 32 ROM images - two at time!

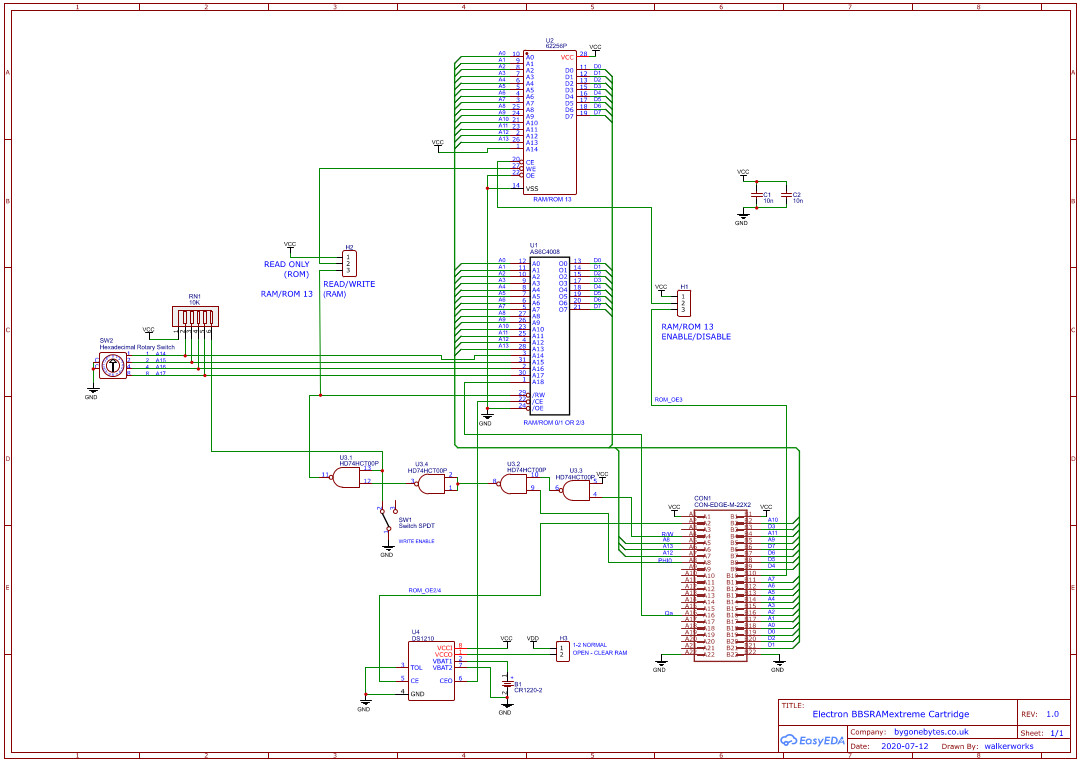

If you would like to build one for yourself, everything you need including the Gerbers, BOM and Circuit Diagram are here - Battery Backed SRAMextreme.
